EASYLIFT RA21

Description

Height, outreach, and compactness: built for versatility

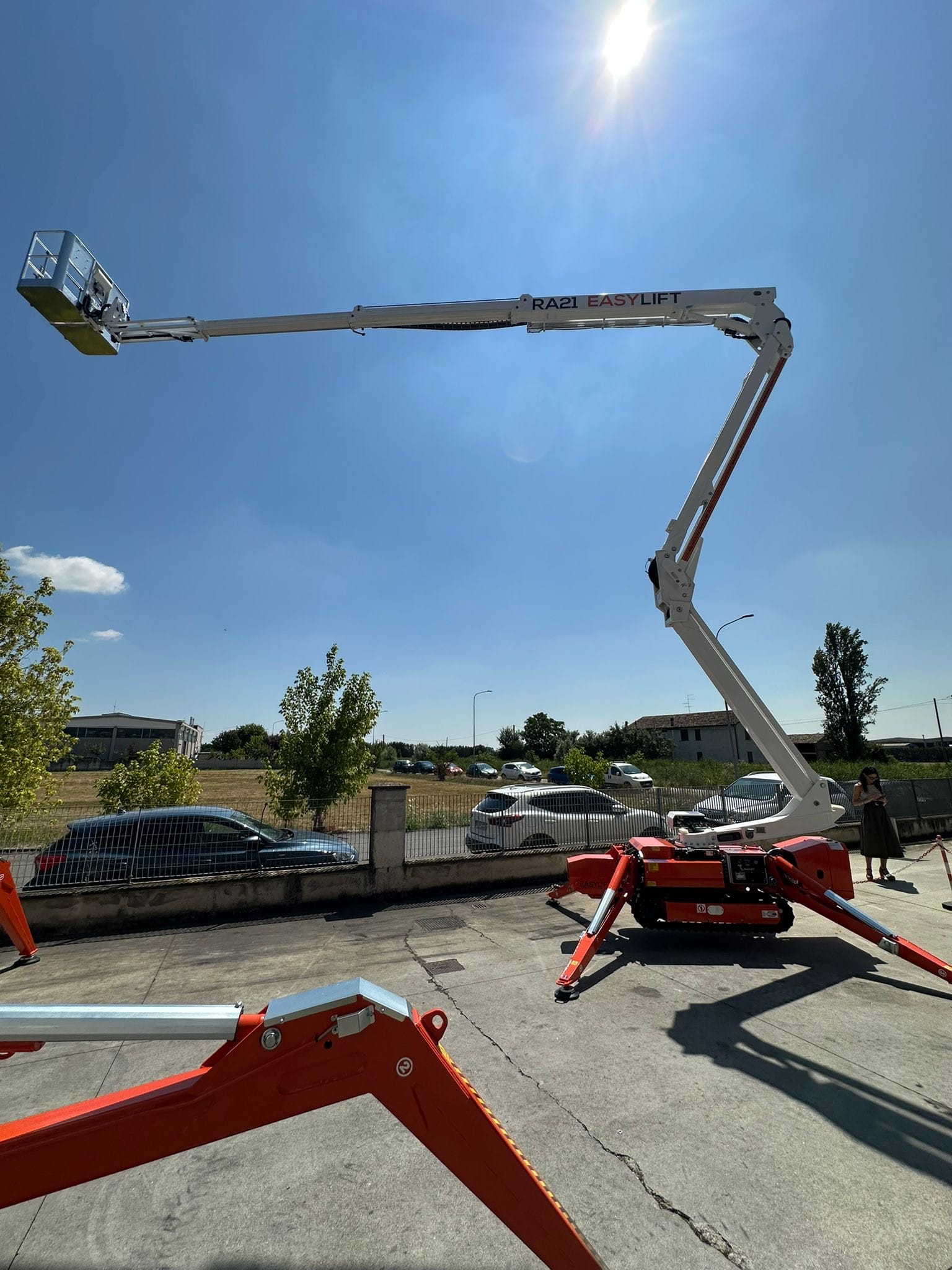

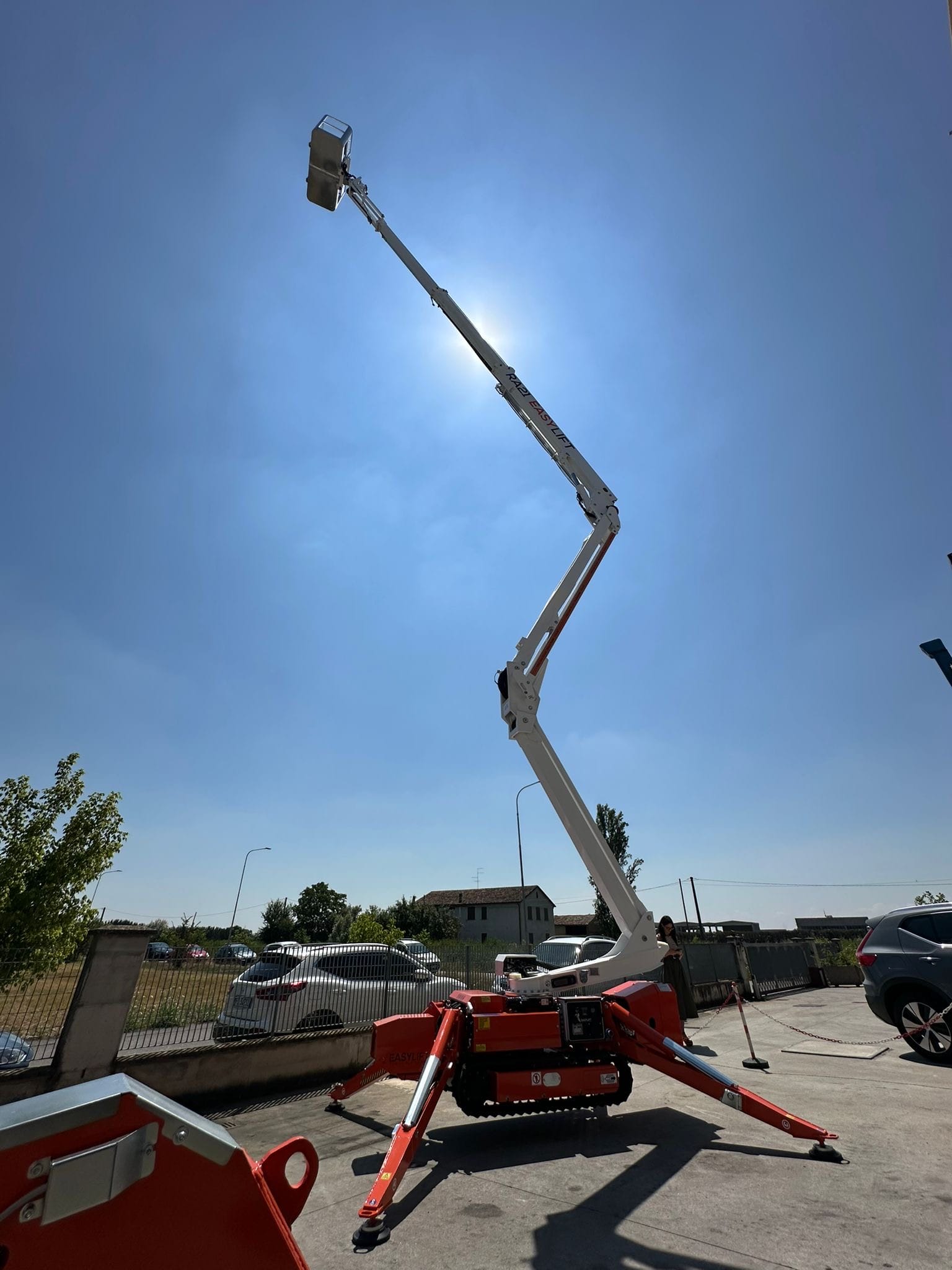

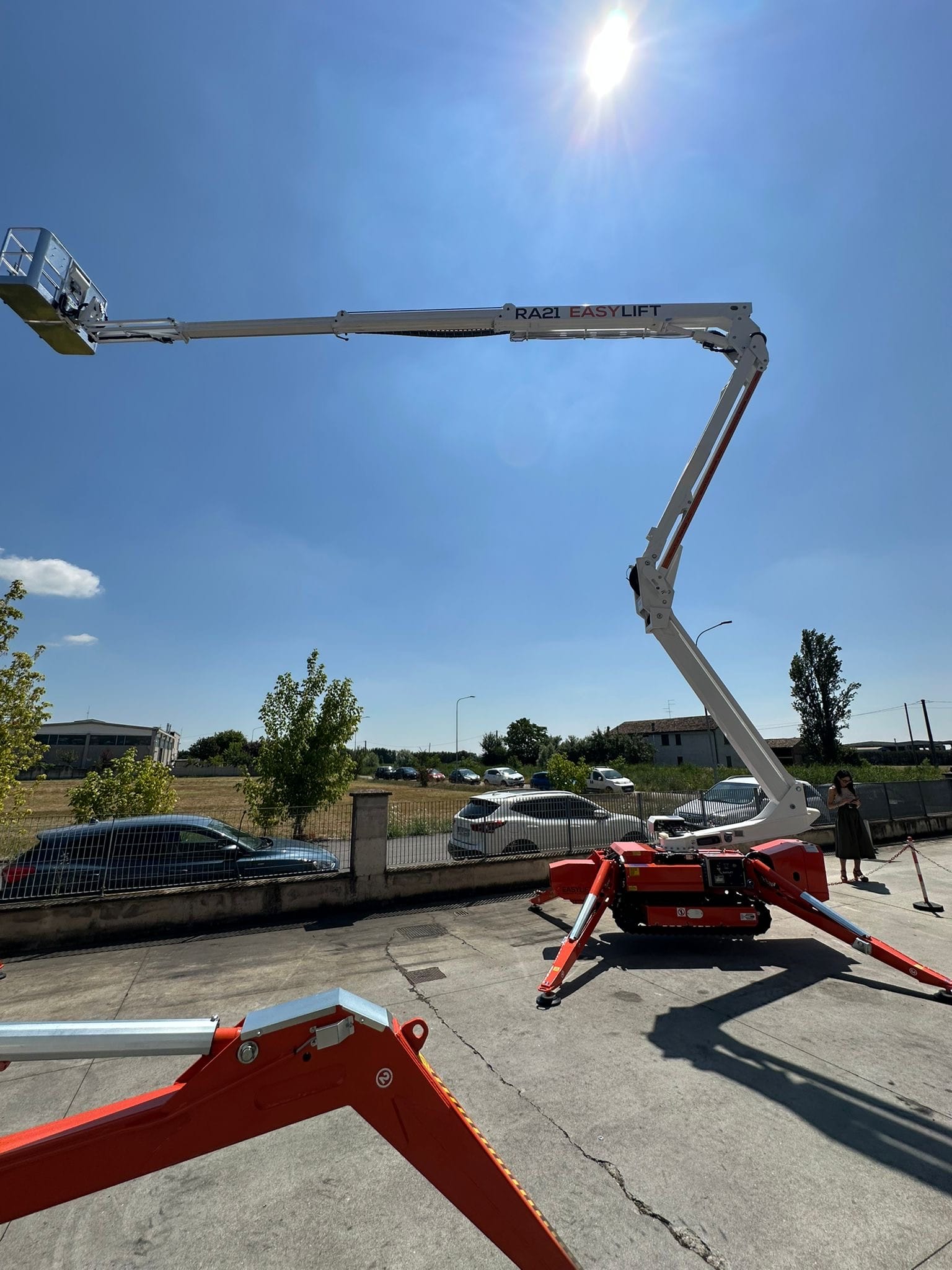

The RA21 reaches a working height of 20.4 meters, a horizontal outreach of nearly 10 meters, and an up-and-over clearance of 9 meters.

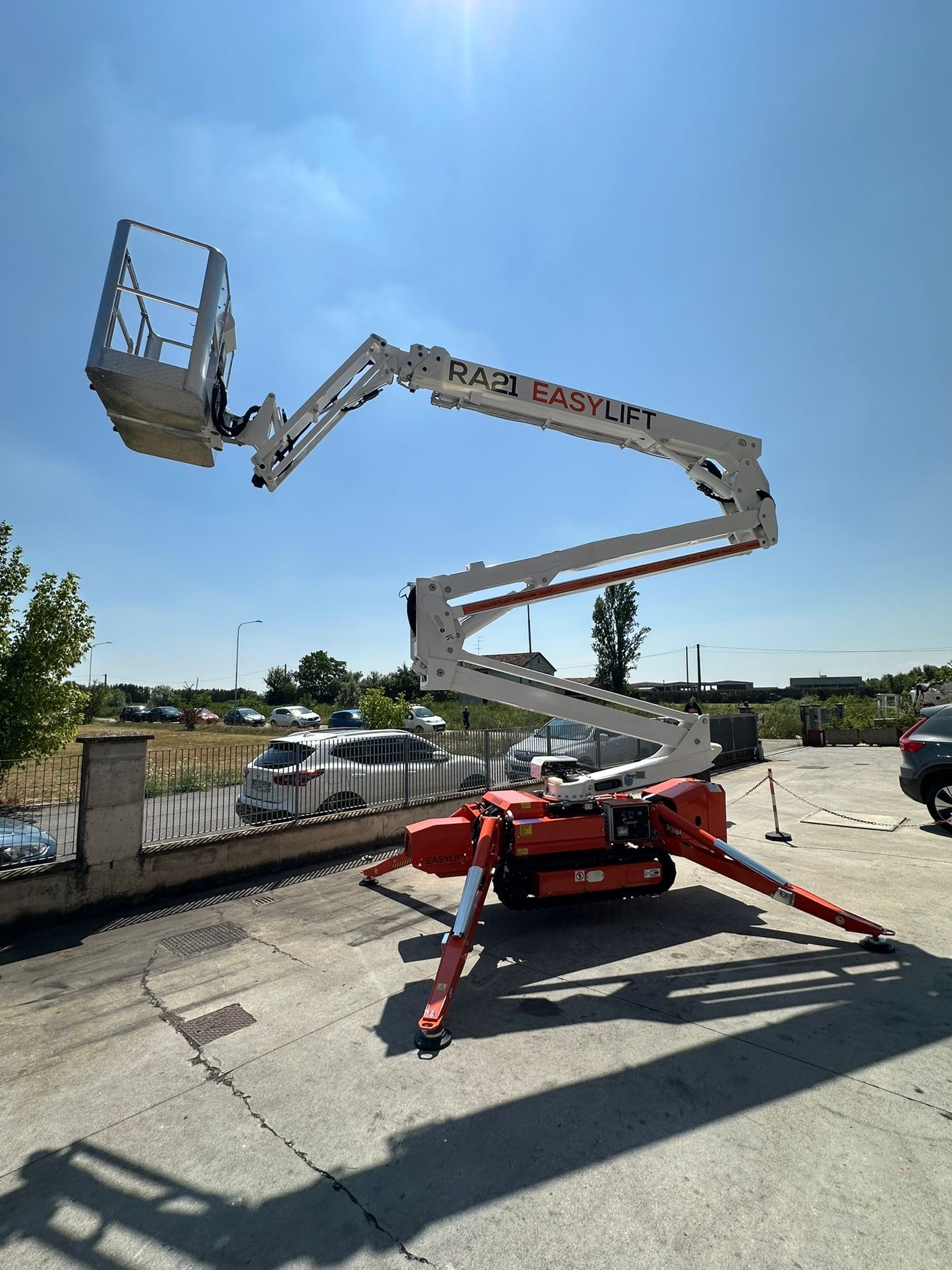

Its technical configuration includes a double-pantograph arm, a main boom with two extensions, and a 1.8-meter jib with 90° rotation, allowing agile operation even in complex or confined spaces.

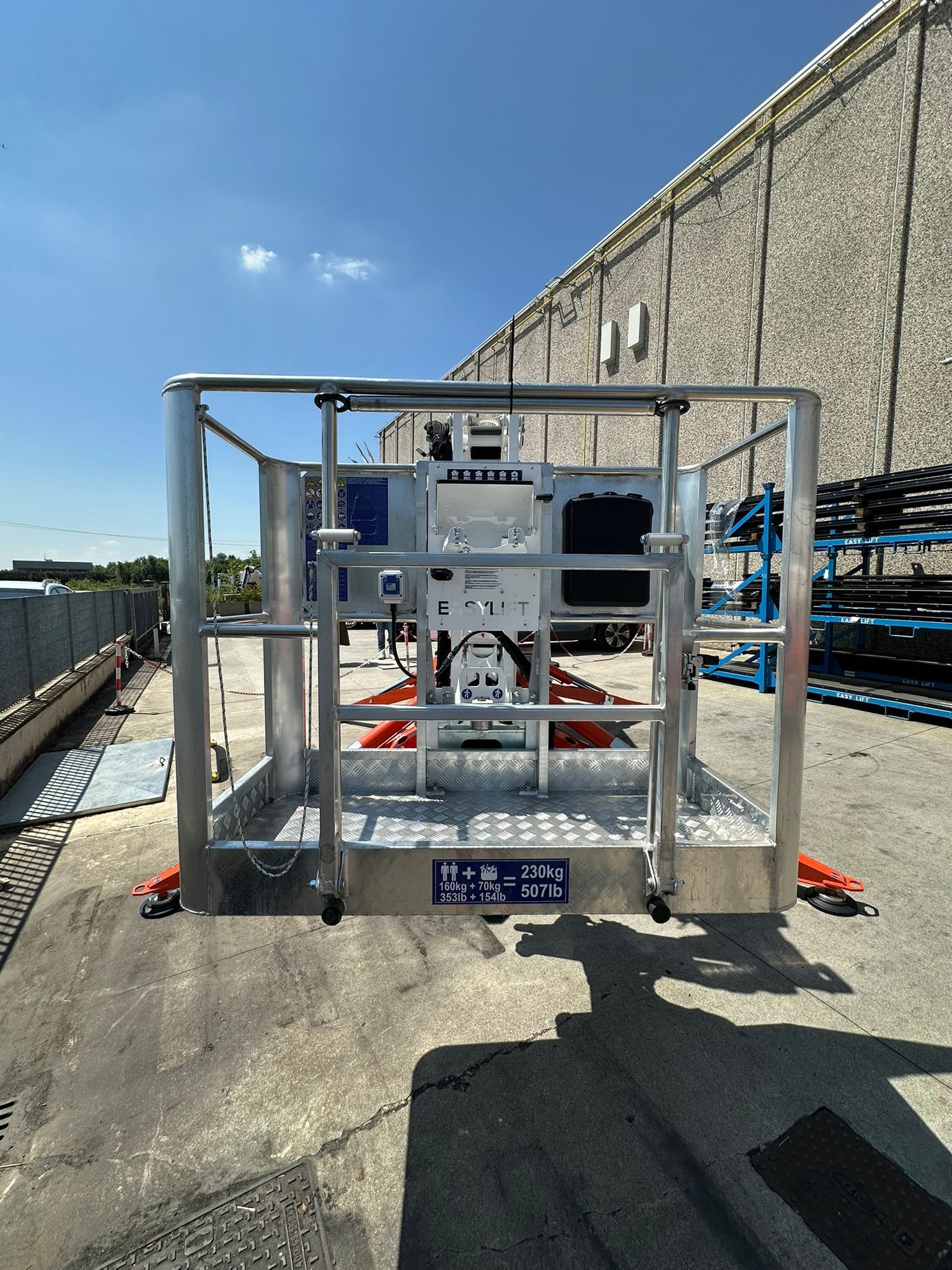

The basket, with a 160° rotation and an unrestricted 230 kg capacity, provides full working coverage across the turret’s 440° rotation. The absence of an outreach limiter ensures easy handling, making the RA21 intuitive and ideal for operators of all experience levels.

Despite its advanced performance, the RA21 stands out for its compactness and light weight: 4.5 meters in length and only 0.86 meters in width (without basket), with a total weight of 2,850 kg. It can be transported on a trailer, pass through standard doors, and operate in narrow or limited-access environments. Its compact stabilization area is 2.9 x 2.9 meters, making it ideal for challenging job sites.
